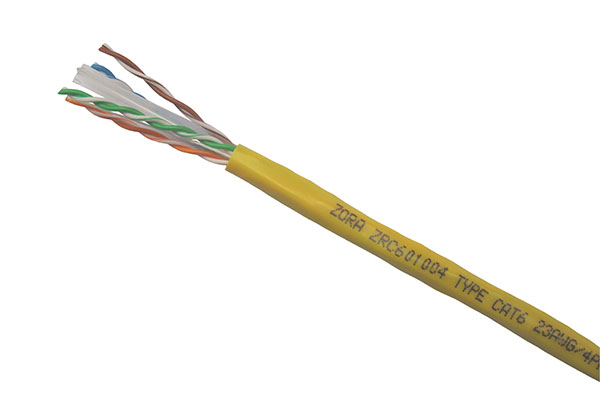

ZRC601004 CAT6 unshielded cable: used in structured wiring data transmission cables, transmitting digital, voice, data and video signals, suitable for all E-level links and CAT6 applications.

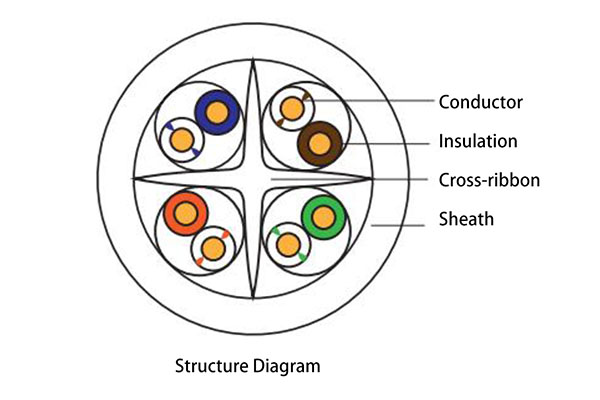

1. Structure: The cable adopts a unique inner cross skeleton design, which effectively improves the electrical performance of NEXT, FEXT, etc. on the basis of better ensuring the outer diameter. 2. Copper material: Select domestic high-quality oxygen-free copper. 3. Line shape: Adopt internationally popular and advanced tight-wrapped line shape. 4. Bandwidth: The output and input bandwidth can reach 250MHz, supporting Gigabit Ethernet data transmission. 5. Twist pitch: The cable has a precise twist pitch. 6. Sheath: The outer sheath is PVC material and the inner sheath is flame-retardant polyethylene. 7. Color: Yellow, green, and can also be customized according to customer requirements. 8. Provide cable length marking to reduce waste. 9. Standard: Conforms to domestic and international standards YD/T 1019, TIA/EIA-568.2-D.
