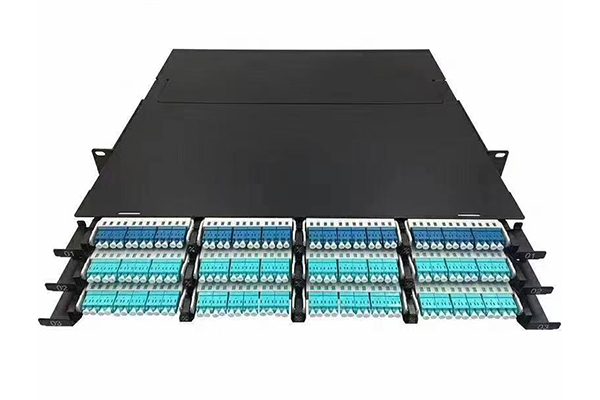

High-Density Fiber Optic Patch Panel
ZRG6092-LC
Send Email Details
High-density fiber optic patch panels can be integrated with MPO (MTP) module boxes, adapter patch panels and branch jumpers. This economical design reduces the number of patch panels that need to be installed and saves valuable rack space.
Applications: main cross-connection, intermediate cross-connection and connection between telecommunications equipment, installation of racks or equipment cabinets, cross-connection using high-density large-core optical cables. -

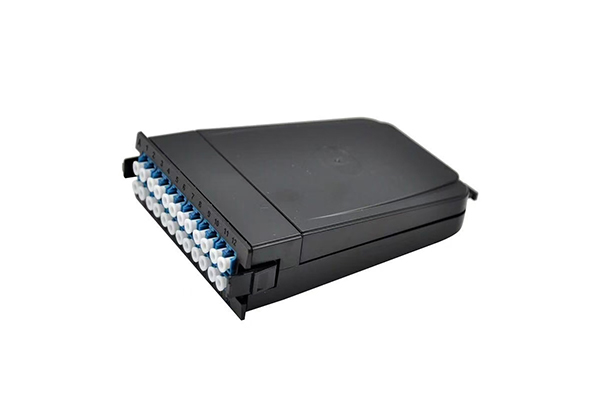

MPO (MTP) Module Box
ZRG6002-24
Send Email Details
The MPO (MTP) module box is also called a plug-and-play module. It has a built-in branch jumper, which is used to branch the 12-core MPO (MTP) connector of the trunk optical cable terminal into a single-core or dual-core connector. The single-core or multi-core adapter is located at the front of the module, and one or two MPO (MTP) adapters are configured on the back. The built-in branch jumper connects the adapter on the front panel of the module with the MPO (MTP) adapter on the back. This module can be easily installed in the optical fiber distribution frame.
Application: Used for modular installation in optical fiber distribution equipment to achieve structured wiring of trunk optical cables and distribution areas. -

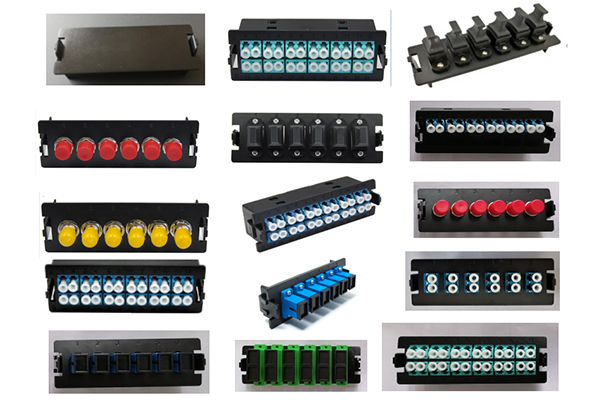

Adapter Panel
ZRG6000-LC/SC
Send Email Details
The adapter panel provides fast and effective connection interface management for MPO (MTP) or LC/SC connectors, and can realize MPO (MTP) connector connection, or LC/SC connector connection management.
Application: High-density new generation data center, to realize the connection and deployment of jumpers and pigtails between devices and in the patch panel. -
MPO/MTP Backbone Pre Terminated Optical Cable
ZRG6010-X
Send Email Details
Pre-terminated trunk optical cables use small-diameter OM3/OM4/OS2 optical cables and 12-core MPO (MTP) connectors. The plug-and-play MPO (MTP) pre-terminated optical cables can be quickly deployed and easily connected to plug-and-play modules or MPO (MTP) adapter panels. Customers can design according to actual conditions to achieve precise wiring requirements. The pre-terminated optical cables can effectively achieve high-performance, high-density fiber optic system connections.
Applications: physical layer connections of data center infrastructure, LAN backbone systems, building and campus backbone connections. -
Branch Jumper
ZRG6011-X
Send Email Details
Branch jumpers are used to divide the 12-core terminal connector of the trunk optical cable into single-core or dual-core connectors. The MPO (MTP) connector is connected to the trunk optical cable, and the single-core or dual-core connector at the other end can provide different branch connectors for easier equipment connection.
Application: Internal optical cable laying in data centers, used with MPO (MTP) adapter panels.
