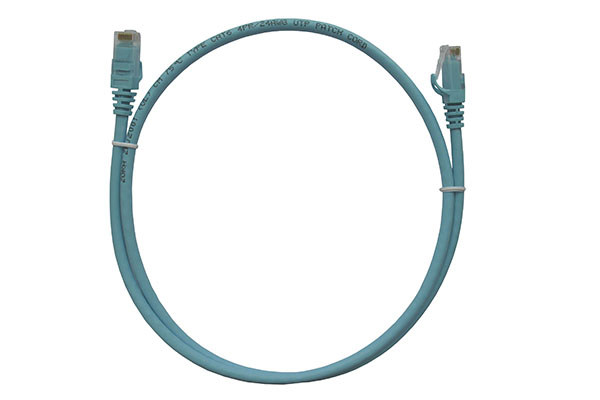

2m CAT6 Data Jumper

ZRJ2002-(n)
ZORA CAT6 unshielded patch cord is suitable for structured cabling system; it can transmit digital, voice, data and video signals, and is suitable for all E-level channels and CAT6 applications, including ISDN, 10M Ethernet, 100M Fast Ethernet, 1000M Ethernet, 4/16Mbit/s Token Ring, TP-PMD/TP-DDI 125Mbit/s, ATM155Mbit/s, ATM622Mbit/s.
1. Implementation standards: YD/T926.3, ISO/IEC11801, ANSI/TIA-568.2-D.
2. Plug technology: plug protection device design, perfect combination with crystal head and cable, elegant and durable, high-toughness long handle support at the tail, effectively relieves the suspension fatigue of the jumper during use, improves service life, no high-temperature injection molding process, effectively improves transmission performance.
3. Conductor: multi-strand twisted copper soft conductor wire gauge: 24AWG.
4. Cable structure: center cross skeleton wire pair isolation technology, effectively reduces near-end crosstalk.
5. Crystal head: the front-end branch line part is shorter, reducing the length of the wire pair twisting distance, ensuring the stability of the impedance of the two differential signals of the same line pair, and the three-pronged crystal head reed, reducing the contact resistance between the wire and the wire.
6. Support bandwidth: 250MHz.

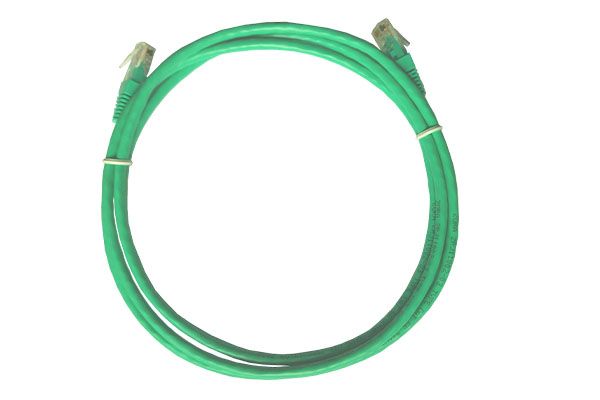

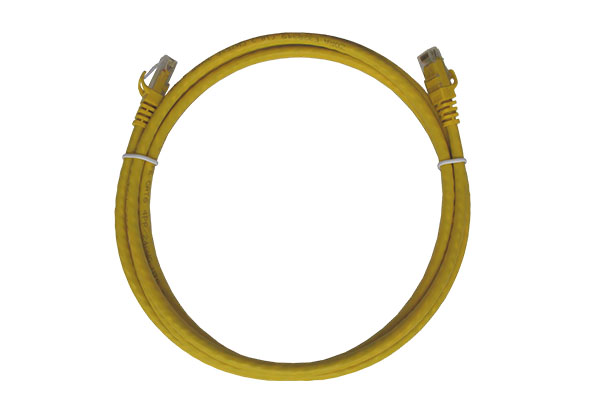

7. Seven colors are available, and the length can be customized according to the needs of the purchaser.
×
