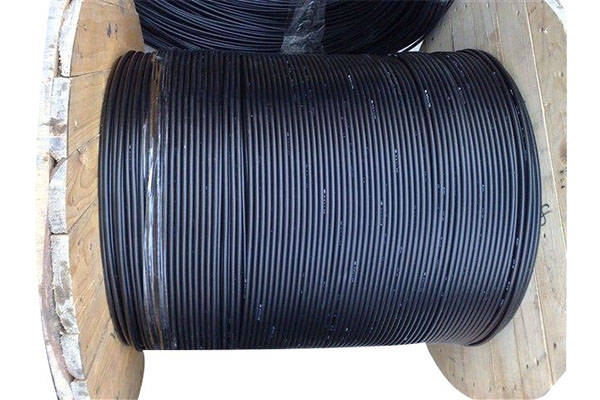

12-Core Outdoor 10G Optical Cable

ZRC55SW50-12

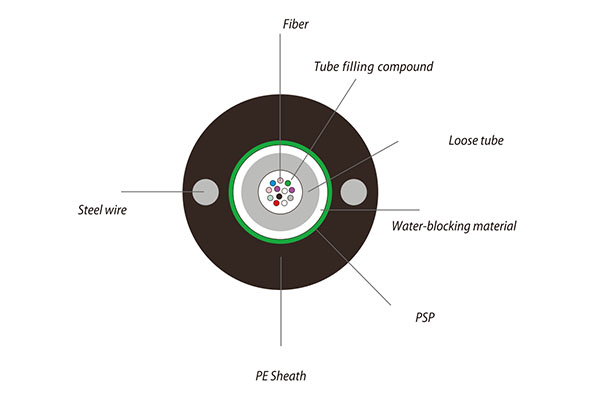

ZORA outdoor central bundle light optical cable is a single-mode or multi-mode optical fiber sheathed in a loose tube made of high modulus PBT (polybutylene glycol ester) material, and the tube is filled with fiber paste. Two parallel FRP and polyethylene (PE) sheathed cables are placed on both sides of the central bundle tube.

Consult

Features
Technical Indicators
Overall Dimension

1. Fiber type: OM3 multimode optical cable. 2. Specification: 50/125μm. 3. Multi-layer protection and unique reinforcement elements effectively prevent various mechanical damage and animal damage. 4. The double water-blocking structure of water-blocking tape and special fiber paste ensures excellent moisture-proof sealing performance. 5. Wide operating temperature range, suitable for use in various occasions. 6. Laying method: overhead, pipeline, direct burial. 7. Fiber standard: YD/T 3349.1-2018.
