CAT6 Low Smoke Zero Halogen Unshielded Twisted Pair Cable

CAT6 Low Smoke Zero Halogen Unshielded Twisted Pair Cable

ZRC601004DL

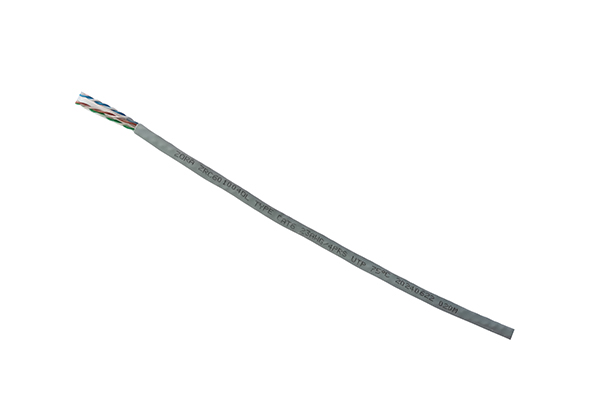

ZORA CAT6 low-smoke halogen-free unshielded cable is used in structured wiring data transmission cables to transmit digital, voice, data and video signals, suitable for all E-level links and CAT6 applications.

Consult

Features
Technical Indicators
Overall Dimension

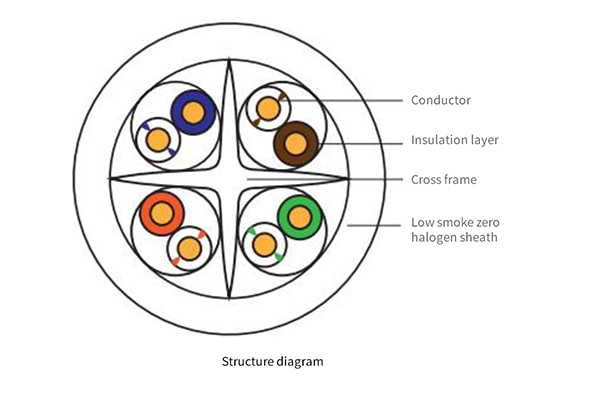

1. Structure: The cable adopts a unique inner cross skeleton design, which effectively improves the electrical performance of NEXT, FEXT, etc. on the basis of better ensuring the outer diameter. 2. Copper material: high-quality oxygen-free copper; 3. Line shape: adopts internationally popular and advanced tight-wrapped line shape; 4. Bandwidth: The output and input bandwidth can reach 250MHz, supporting Gigabit Ethernet data transmission; 5. Sheath: The outer sheath is LSZH (low smoke zero halogen) material, and the inner sheath is flame-retardant polyethylene; 6. Color: gray; 7. Provide cable length marking to reduce waste during construction; 8. Standard: in line with domestic and international standards YD/T 1019, TIA/EIA-568.2-D.
