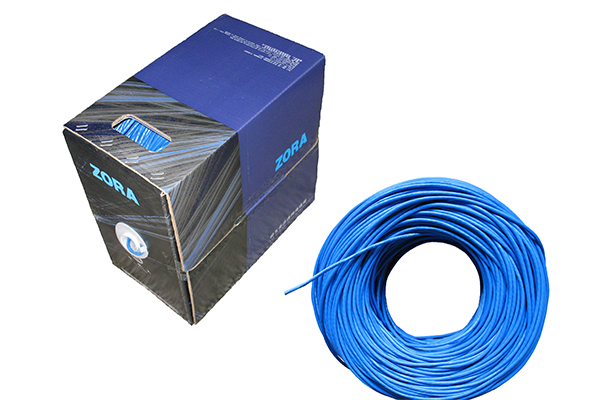

CAT 5e Unshielded Twisted Pair

ZRC5101004
ZORA CAT 5e unshielded cable is used for structured cabling data transmission cable; it transmits digital, voice, data and video signals, and is suitable for all D-level links and CAT 5e applications.

Consult

Features
Technical Indicators
Overall Dimension

1. Outer sheath: PVC material or low smoke zero halogen (LSZH) material, with cable tear cord inside. 2. Wire gauge: 24AWG, copper core material is oxygen-free copper. 3. Insulation layer: PE material. 4. Transmission bandwidth: 100MHz. 5. Cable impedance: 100±15Ω. 6. Sheath color: environmentally friendly blue.
