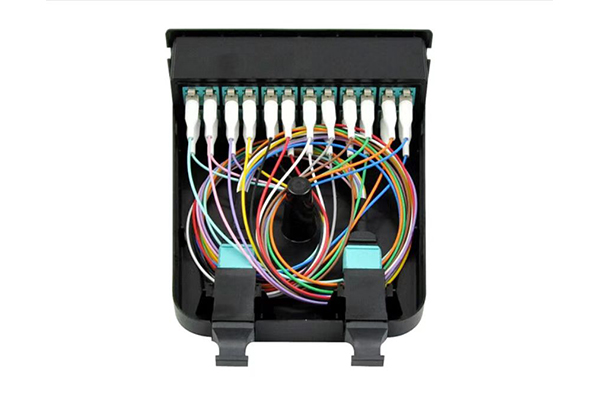

MPO (MTP) Module Box
ZRG6002-24
The MPO (MTP) module box is also called a plug-and-play module. It has a built-in branch jumper, which is used to branch the 12-core MPO (MTP) connector of the trunk optical cable terminal into a single-core or dual-core connector. The single-core or multi-core adapter is located at the front of the module, and one or two MPO (MTP) adapters are configured on the back. The built-in branch jumper connects the adapter on the front panel of the module with the MPO (MTP) adapter on the back. This module can be easily installed in the optical fiber distribution frame.
Application: Used for modular installation in optical fiber distribution equipment to achieve structured wiring of trunk optical cables and distribution areas.
