Branch Jumper

ZRG6011-X

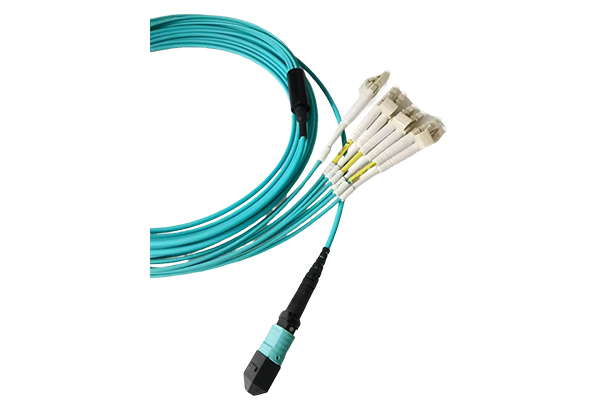

Branch jumpers are used to divide the 12-core terminal connector of the trunk optical cable into single-core or dual-core connectors. The MPO (MTP) connector is connected to the trunk optical cable, and the single-core or dual-core connector at the other end can provide different branch connectors for easier equipment connection.
Application: Internal optical cable laying in data centers, used with MPO (MTP) adapter panels.

Consult

Features
Technical Indicators
Overall Dimension

1. Use standard high-density MPO (MTP) optical fiber active connectors and simplex or duplex connectors. 2. 100% factory pre-terminated and tested to ensure its transmission performance. 3. Quick configuration and networking to reduce on-site installation time. 4. Quick upgrade to support parallel transmission system applications. 5. The length of the trunk and branch harnesses can be customized. 6. The optical cable adopts a loose tube structure, and the outer sheath can be selected from PVC and LSZH. 7. Implementation standards: Meet TIA/EIA604-5, IEC61754 series standards.
